2.0mm 304/316 Stainless Steel Insulation Lacing Anchors For Building Boiler
Quick details of 2.0mm stainless steel insulation lacing anchors :
| Specification of 2.0mm stainless steel insulation lacing anchor |
| Material | Head size | Pin diameter | pin length |
| stainless steel 304 | 22mmx1mm | 2.0mm | 65mm |
| stainless steel 316 | 22mmx1mm | 2.0mm | 65mm |
| Head type | Hook length | Hook width | Custom |
| round head rectangle head | 11mm | 5mm | we can design the type according your requirement |
2.0mm stainless steel insulation lacing anchors product introduce:
Insulation lacing anchors are used in the production of insulation blankets or removable covers and
pads. The pin is pressed through the insulation layer, so the hook portion sits on the top edge and
the pin is locked on the opposite side of the insulation with a washer. The two sides of the insulation
materials can then be "laced" together by the hooks with tie wire.
lacing anchors Material :Stainless steel or low carbon steel
mild steel lacing anchors Plating:Zinc plating for low carbon steel,Passivating for stainless steel
Annealing: All steel pins are fully annealed unless otherwise specified
Standard of 2.0mm stainless steel insulation lacing anchors :
| US Standard of lacing anchor | EU standard of lacing anchors | Australia standard of lacing anchors |
The head diameter is 1",
the pin diameter is 10Ga,
the length we have 1/2"- 2 " | The head diameter is 30mm,
the pin diameter is 2.7mm,
there are many different length for EU market,
the length we manufactured-22mm- 100mm
Some customer will need kraft paper under head,
some customer will need a plastic sleeve on pin, | People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.
The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free |

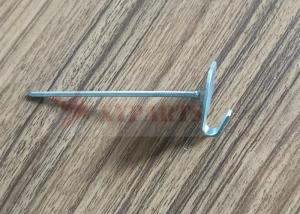

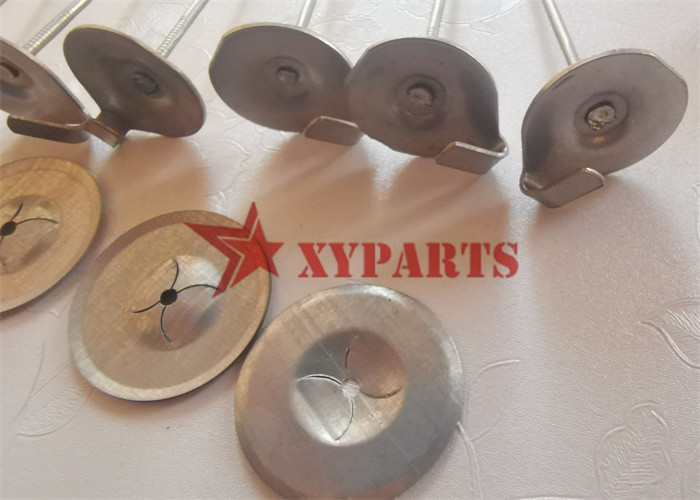

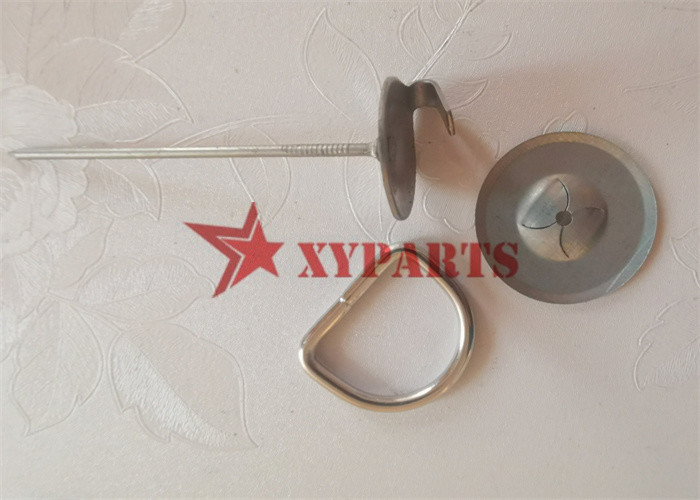

2.0mm stainless steel insulation lacing anchors product pic :
Applications of stainless steel insulation lacing anchors :
| · Rooftop insulation (can be applied under shingles) · Process piping and tanks · Petrochemical processing · Refineries and manufacturing plants · Hot and cold food processing · Wine tank insulation · Retort ovens · Refrigerated rooms and buildings · Heat conservation applications · Boats and ships |
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
