12 Gauge 316 Stainless Steel Insulation Lacing Anchors For Removable Blanket

Name: 12 Gauge 316 Stainless Steel Insulation Lacing Anchors For Removable Blanket
Brand: HUIHAO
Price: 1 USD

China 12 Gauge 316 Stainless Steel Insulation Lacing Anchors For Removable Blanket wholesale

Brand Name : HUIHAO

Model Number : lacing anchors

Certification : ISO 9001

Place of Origin : China

MOQ : 10.000 SETS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 350000 SETS per month

Delivery Time : 15 days after confirm the order

Packaging Details : carton+wooden pallet

Product name : insulation lacing anchors

Material : stainless steel ,carbon steel

Head style : round or rectangle

install parts : self-locking washer , D type ring

Pin diameter : 2.0mm,2.2mm,3.0mm

Pin length : 25mm-220mm

Sample : freely

Factory : YES

Contact Now

12 Gauge 316 Stainless Steel Insulation Lacing Anchors For Removable Blanket

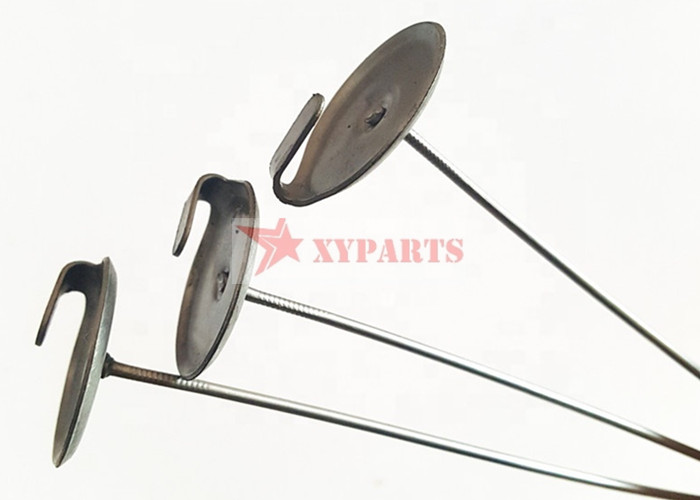

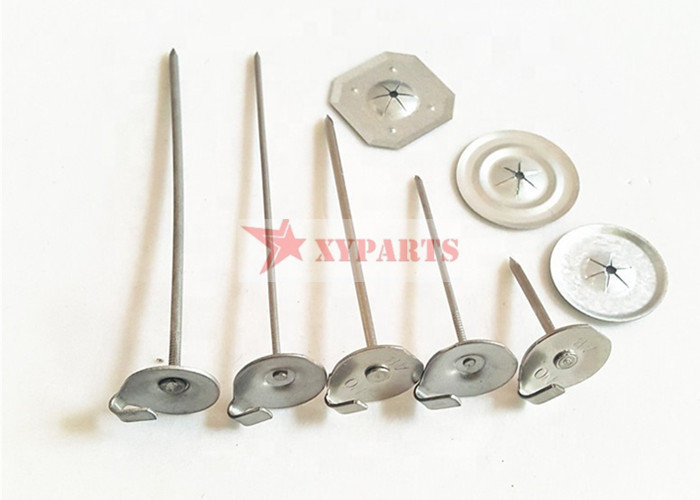

12 Gauge 316 Stainless Steel Insulation Lacing Anchors Type :

Type 1

Round head insuation lacing anchor

Material:stainless steel

Head diameter:30mm

Hook size:11x5mm

Pin diameter:12 GA,14GA,3mm

Pin length:38mm-300mm

Type 1

Round head insuation lacing anchor

Material:stainless steel

Head diameter:22mm

Hook size:11x5mm

Pin diameter:12 GA,14GA,3mm

Pin length:38mm-300mm

Type 3

Rectangle head insuation lacing anchor

Material:stainless steel

Head sizer:25x11mm

Hook size:11x5mm

Pin diameter:12 GA,14GA,3mm

Pin length:38mm-300mm

Standard of 12 Gauge 316 Stainless Steel Insulation Lacing Anchors :

US Standard of lacing anchor	EU standard of lacing anchors	Australia standard of lacing anchors

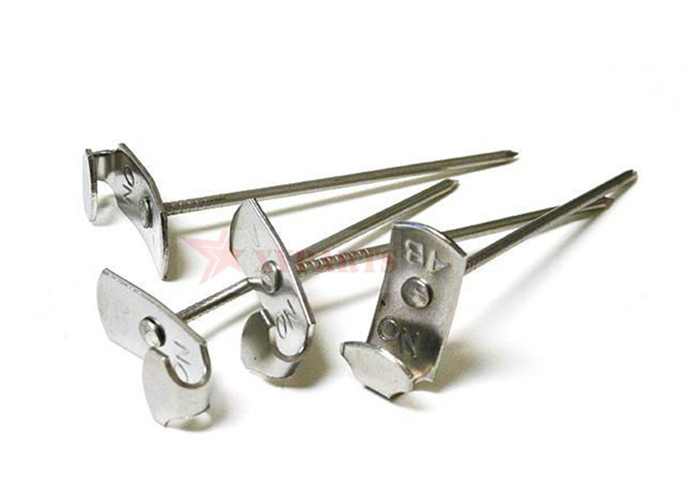

The head diameter is 1", the pin diameter is 10Ga, the length we have 1/2"- 2 "	The head diameter is 30mm, the pin diameter is 2.7mm, there are many different length for EU market, the length we manufactured-22mm- 100mm Some customer will need kraft paper under head, some customer will need a plastic sleeve on pin,	People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm. Lacing anchors marked NO AB to notify the blanket is asbestos free

How to install 12 Gauge 316 Stainless Steel Insulation Lacing Anchors :

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

How to choose suitable pin length for fixing insulation material ?

=38mm insulation pin fixing for 15mm-25mm insulation materials

=63mm insulation pin fixing for 25mm-45mm insulation materials

=90mm insulation pin fixing for 45mm-70mm insulation materials

=110mm insulation pin fixing for 40mm--70mm insulation board

=145mm insulation anchors for 75mm-105mm insulation slabs

=170mm fireproof fixing for 105-130mm insulation panels

=200mm metal fasteners for 135mm-160mm insulation boards

12 Gauge 316 Stainless Steel Insulation Lacing Anchors For Removable Blanket

Package Of 12 Gauge 316 Stainless Steel Insulation Lacing Anchors : :

Product	Size(mm)	Quantity	Caton(cm)	Weight
Lacing Anchors	12Gauge*2.5"	1000Pcs	262618	8.6kgs
Lacing Anchors	12Gauge*4.5"	1000Pcs	262625	9.9kgs
Lacing Anchors	14Gauge*2.5"	1000Pcs	262618	10kgs
Lacing Anchors	14Gauge*4.5"	1000Pcs	262625	12.3kgs
